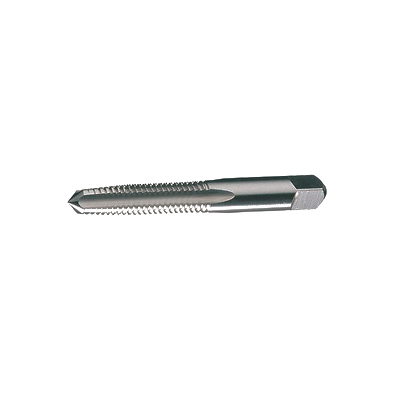

Kennametal® Widia-Gtd™ 14022 Production Taper Tap, 1/4-20 UNC, 4 Flute, HSS, Uncoated
Item #BC000973

Kennametal® Widia-Gtd™ Production Tap, List Number: 5303, Measuring System: SAE, Taper, Size: 1/4"", 20 Pitch, UNC Thread, Pitch Diameter Limits: H3, 1"" Thread Length, 4 Flute, Shank Diameter: 0.2550"", Right Hand Cutting Direction, 2.500"" Overall Length, High Speed Steel, Uncoated, ANSI, Can be used for Through-Hole Applications
  • Straight-flute design
  • Versatile design
  • Through-coolant holes available
  • Taps offer increased wear life
  • Store chips in their flutes during threading, which protects the workpiece
BrandKennametal® Widia-Gtd™
ItemProduction Tap
List Number5303
Measuring SystemSAE
Tap StyleTaper
Size1/4""
Pitch20
Thread TypeUNC
Pitch Diameter LimitsH3
Thread Length1""
Number Of Flutes4
Shank Diameter0.2550""
Cutting DirectionRight Hand
Overall Length2.500""
MaterialHigh Speed Steel
FinishUncoated
StandardsANSI
ApplicationCan be used for Through-Hole Applications
