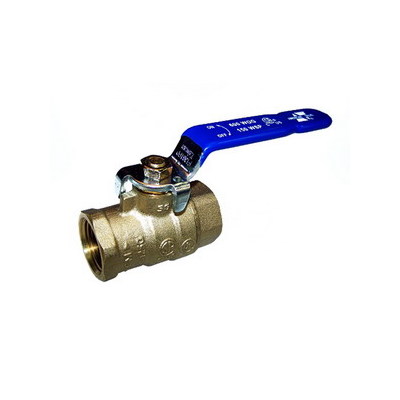

American Valve® M100-2 Z485 Full Port Cast Brass Ball Valve with FIP Threaded End, 2", 600 psi
Item #BC004560

American Valve® Ball Valve with FIP Threaded End, Forged Brass Ball, Cast Brass Body Material, Steel Handle, 600 psi WOG Maxi, 2" Pipe Size, Port: Full, PTFE Seal, PTFE Seat, Standards: MSS SP-110, UL Listed, FM Approved, CSA Certified, Stem : Brass, Stem Type: Blow-Out Proof, Model Number: Z485, 110mm Length, 88mm Height, 50mm Diameter, 200mm Handle, CV Factor: 200, Governing Specification: ANSI, ASME, Dimension: ANSI Z21.15/CSA 9.1, CGA 3.16, ASME B16.33, ASME B16.44, CGA CR91-002, CAN/CGA 9.2, Material Specification: AISI-1010, A283-D, B16-C36000, B124-C37700, B584-C85700
  • Steel nut, brass stem gland screw
BrandAmerican Valve®
ItemBall Valve with FIP Threaded End
Ball MaterialForged Brass
Body MaterialCast Brass
Handle MaterialSteel
Maximum Pressure600 psi WOG
Pipe Size2"
PortFull
Seal MaterialPTFE
Seat MaterialPTFE
StandardsMSS SP-110, UL Listed, FM Approved, CSA Certified
Stem MaterialBrass
Stem TypeBlow-Out Proof
Model NumberZ485
Length110mm
Height88mm
Diameter50mm
Handle Length200mm
CV Factor200
Governing SpecificationANSI, ASME
Dimension SpecificationANSI Z21.15/CSA 9.1, CGA 3.16, ASME B16.33, ASME B16.44, CGA CR91-002, CAN/CGA 9.2
Material SpecificationAISI-1010, A283-D, B16-C36000, B124-C37700, B584-C85700
