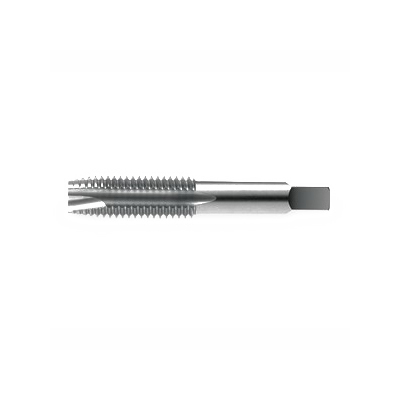

Kennametal® Widia-Gtd™ 11553 Maintenance Hand Plug Tap, #10-32 UNF, 3 Flute, HSS, Uncoated
Item #BC006108

Kennametal® Widia-Gtd™ Maintenance Hand Tap, List Number: 7305, Measuring System: SAE, Plug, Plug: 3-5 Pitch, Size: #10, 32 Pitch, UNF Thread, Pitch Diameter Limits: 2B, 0.875"" Thread Length, 3 Flute, Shank Diameter: 0.1940"", Right Hand Cutting Direction, 2.375"" Overall Length, High Speed Steel, Uncoated, ANSI, For Hand and Power Tapping for Through or Blind Holes
  • Ground thread and straight-flute design for sharp cutting action
  • Class 2B maintenance pitch diameter tolerances for longer life
  • Industrial quality taps at maintenance prices
  • Machine screw sizes
BrandKennametal® Widia-Gtd™
ItemMaintenance Hand Tap
List Number7305
Measuring SystemSAE
Tap StylePlug
Plug3-5 Pitch
Size#10
Pitch32
Thread TypeUNF
Pitch Diameter Limits2B
Thread Length0.875""
Number Of Flutes3
Shank Diameter0.1940""
Cutting DirectionRight Hand
Overall Length2.375""
MaterialHigh Speed Steel
FinishUncoated
StandardsANSI
ApplicationFor Hand and Power Tapping for Through or Blind Holes
