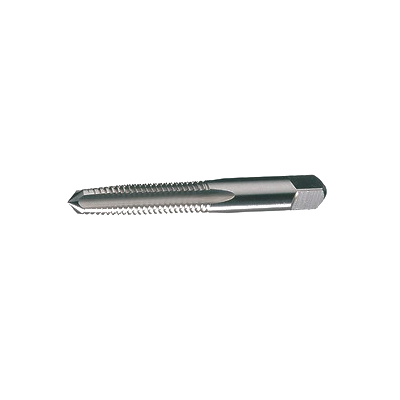

Kennametal® Widia-Gtd™ 15360 Production Taper Tap, #10-32 UNF, 4 Flute, HSS, Uncoated
Item #BC006551

Kennametal® Widia-Gtd™ Production Tap, List Number: 5305, Measuring System: SAE, Taper, Size: #10, 32 Pitch, UNF Thread, Pitch Diameter Limits: H3, 0.880"" Thread Length, 4 Flute, Shank Diameter: 0.1940"", Right Hand Cutting Direction, 2.380"" Overall Length, High Speed Steel, Uncoated, Can be used for Through-Hole Applications
  • Straight-flute design
  • Versatile design
  • Through-coolant holes available
  • Taps offer increased wear life
  • Store chips in their flutes during threading, which protects the workpiece
BrandKennametal® Widia-Gtd™
ItemProduction Tap
List Number5305
Measuring SystemSAE
Tap StyleTaper
Size#10
Pitch32
Thread TypeUNF
Pitch Diameter LimitsH3
Thread Length0.880""
Number Of Flutes4
Shank Diameter0.1940""
Cutting DirectionRight Hand
Overall Length2.380""
MaterialHigh Speed Steel
FinishUncoated
ApplicationCan be used for Through-Hole Applications
