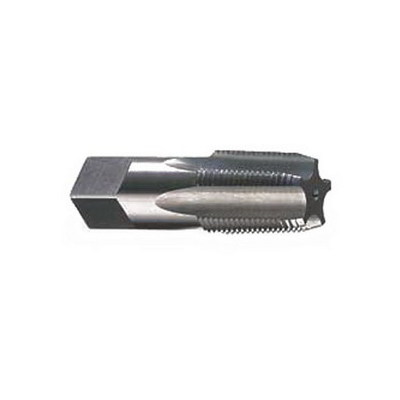

Greenfield 7320 Series 4 Flute HSS Taper Pipe Tap, 1/4-18 NPT
Item #BC007079

Pipe Taper Tap, Thread Size 1/4 in, 18 TPI, 2-1/8 in Overall Length, NPT With Taper Of 3/4 in Per Foot Thread, 4 Flutes, Pitch Diameter Limit: 2B, High Speed Steel, Uncoated Finish, List Number: Series 7320
  • American standard pipe tap (NPT) thread form with a taper of 3/4-in per foot
  • Made for the most difficult maintenance applications
  • Use for hand tapping or tapping under power
  • Furnished with 2-1/2 to 3-1/2 pitches chamfered
  • Standard projection
TypeTaper
Thread Size1/4 in
Threads Per Inch18
Overall Length2-1/8 in
Thread TypeNPT With Taper Of 3/4 in Per Foot
Number of Flutes4
Pitch Diameter Limit2B
MaterialHigh Speed Steel
FinishUncoated
List NumberSeries 7320
