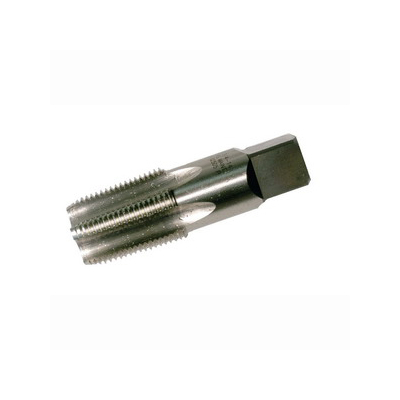

Kennametal® Widia-Gtd™ 11803 Maintenance Taper Pipe Tap, 3/8-18 NPT, 4 Flute, HSS, Uncoated
Item #BC007085

Kennametal® Widia-Gtd™ Maintenance Pipe Tap, List Number: 7320, Measuring System: SAE, Taper, Size: 3/8"", 18 Pitch, NPT Thread, Pitch Diameter Limits: 2B, 1.063"" Thread Length, 4 Flute, Shank Diameter: 0.7000"", Right Hand Cutting Direction, 2.563"" Overall Length, High Speed Steel, Uncoated, Yes Standard Projection, ANSI, For Hand Tapping or Tapping Under Power
  • American Standard Pipe Tap (NPT) thread form with a taper of 3/4"" per foot
  • Made for the most difficult maintenance applications
  • Furnished with 2-1/2 - 3-1/2"" pitches chamfered
BrandKennametal® Widia-Gtd™
ItemMaintenance Pipe Tap
List Number7320
Measuring SystemSAE
Tap StyleTaper
Size3/8""
Pitch18
Thread TypeNPT
Pitch Diameter Limits2B
Thread Length1.063""
Number Of Flutes4
Shank Diameter0.7000""
Cutting DirectionRight Hand
Overall Length2.563""
MaterialHigh Speed Steel
FinishUncoated
Standard ProjectionYes
StandardsANSI
ApplicationFor Hand Tapping or Tapping Under Power
