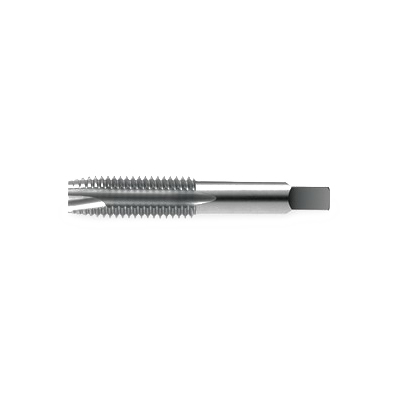

Kennametal® Widia-GTD™ Gun® 13280 Production Plug Tap, 1/4-28 UNF, 2 Flute, HSS, Uncoated
Item #BC013531

Kennametal® Widia-GTD™ Gun® Production Tap, List Number: 5301, Measuring System: SAE, Plug, Size: 1/4"", 28 Pitch, UNF Thread, Pitch Diameter Limits: H3, 1"" Thread Length, 2 Flute, Shank Diameter: 0.2550"", Right Hand Cutting Direction, 2.500"" Overall Length, High Speed Steel, Uncoated, ANSI, The most Efficient Taps for Through Holes
  • Gun® taps shoot chips ahead of the cutting action
  • The most efficient taps for through holes
  • Reduced overloading and clogging in flutes to protect the workpiece
  • Extended life in ferrous materials
  • Higher tapping speeds can be acheived to increase productivity
BrandKennametal® Widia-GTD™ Gun®
ItemProduction Tap
List Number5301
Measuring SystemSAE
Tap StylePlug
Size1/4""
Pitch28
Thread TypeUNF
Pitch Diameter LimitsH3
Thread Length1""
Number Of Flutes2
Shank Diameter0.2550""
Cutting DirectionRight Hand
Overall Length2.500""
MaterialHigh Speed Steel
FinishUncoated
StandardsANSI
ApplicationThe most Efficient Taps for Through Holes
