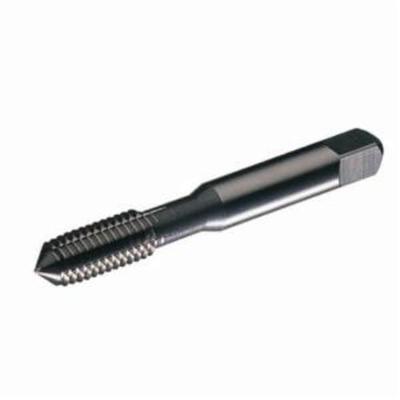

WIDIA™ GTD™ TRU-LEDE™ 2510 Form D Forming Tap, Metric, M4x0.7, Coarse Thread, 4 Flutes, Right Hand Cutting Direction
WIDIA™ GTD™ Forming Tap, Form D, Series: TRU-LEDE™ 2510, Measurement System Metric, M4x0.7, Coarse, Plug Chamfer, 0.38 in Thread Length, 2.13 in Overall Length, 4 Flutes, Right Hand Cutting, 0.168 in Shank Dia, HSS, TiN Coated
- Necked design in sizes #4 through 3/8 in improves coolant flow when threading deep blind holes
- Forming taps displace metal, comparable to external thread rolling, conventional cutting taps remove metal as chips that can clog the threaded hole
- Improved lobe groove design on machine screw sizes #5 and larger improves threading efficiency in blind hole applications
- Tapping speeds can be almost doubled above conventional cutting taps, improving efficiency of the forming action
- Applicable on steel, stainless steel, gray cast iron, ductile cast iron, wrought aluminum, cast aluminum, copper and copper alloys
- Flood coolant
- 3/8 in neck length
- 3/4 in flute length
- 3.5 to 5 pitch
- D6 thread limit
