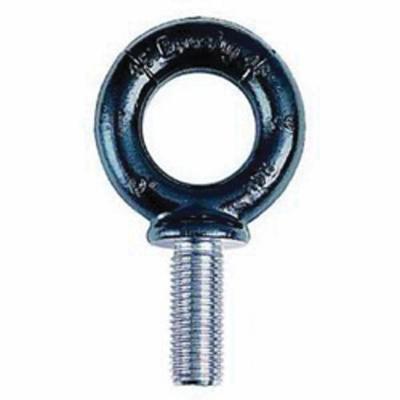

Crosby® Quic-Check® Eye Bolt, Imperial, 1-8, 2-1/2 in Shank, Forged Steel
Item #BC018909

Crosby® Eye Bolt, Series: Quic-Check®, Measurement System Imperial, 1-8, 2-1/2 in Shank Length, Forged Steel, 2 in Inside Eye Dia, 3.76 in Outside Eye Dia, UNC, 6.66 in Overall Length, 13300 lb Working, 2.57 in Thread Length
  • Fatigue rated at 1-1/2 times the working load limit at 20000 cycles
  • S-279 threaded UNC
  • Working load limit shown is for in-line pull only
  • 2 to 3.76 in eye diameter
Diameter - Thread Size1-8
Inside Eye Diameter2 in
MaterialForged Steel
Measurement SystemImperial
Outside Eye Diameter3.76 in
Overall Length6.66 in
SeriesQuic-Check®
Shank Length2-1/2 in
Thread Length2.57 in
Thread TypeUNC
Working Load Limit13300 lb
