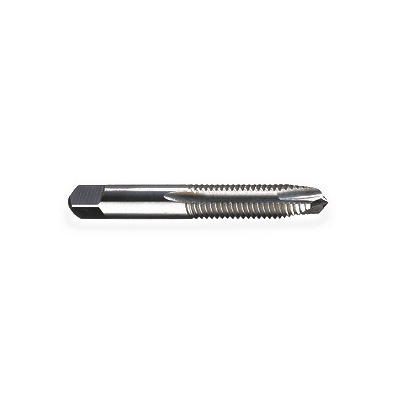

Kennametal® Widia-GTD™ Gun® 12049 Maintenance Gun Plug Tap, 1/2-20 UNF, 3 Flute, HSS, Uncoated
Item #BC026762

Kennametal® Widia-GTD™ Gun® Maintenance Gun Tap, List Number: 7301, Measuring System: SAE, Plug, Size: 1/2"", 20 Pitch, UNF Thread, Pitch Diameter Limits: 2B, 1.656"" Thread Length, 3 Flute, Shank Diameter: 0.3670"", Right Hand Cutting Direction, 3.375"" Overall Length, High Speed Steel, Uncoated, ANSI, For Hand and Power Tapping for Through or Blind Holes
  • Ground thread and straight-flute design for sharp cutting action
  • Class 2B maintenance pitch diameter tolerances for longer life
  • Industrial quality taps at maintenance prices
  • Fractional sizes
BrandKennametal® Widia-GTD™ Gun®
ItemMaintenance Gun Tap
List Number7301
Measuring SystemSAE
Tap StylePlug
Size1/2""
Pitch20
Thread TypeUNF
Pitch Diameter Limits2B
Thread Length1.656""
Number Of Flutes3
Shank Diameter0.3670""
Cutting DirectionRight Hand
Overall Length3.375""
MaterialHigh Speed Steel
FinishUncoated
StandardsANSI
ApplicationFor Hand and Power Tapping for Through or Blind Holes
