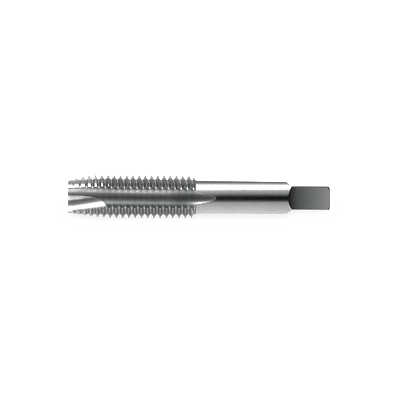

Kennametal® Widia-GTD™ Gun® 13393 Production Plug Tap, M12x1.75mm Coarse, 3 Flute, HSS, Uncoated
Item #BC031284

Kennametal® Widia-GTD™ Gun® Production Tap, List Number: 5351/2351, Measuring System: Metric, Plug, Size: M12, 1.75mm Pitch, Coarse Thread, Pitch Diameter Limits: D11, 1-21/32"" Thread Length, 3 Flute, Shank Diameter: 0.3670"", Right Hand Cutting Direction, 3-3/8"" Overall Length, High Speed Steel, Uncoated, ANSI, USCTI, The most Efficient Taps for Through Holes
  • Gun® taps shoot chips ahead of the cutting action
  • The most efficient taps for through holes
  • Reduced overloading and clogging in flutes to protect the workpiece
  • Extended life in ferrous materials
  • Higher tapping speeds can be acheived to increase productivity
BrandKennametal® Widia-GTD™ Gun®
ItemProduction Tap
List Number5351/2351
Measuring SystemMetric
Tap StylePlug
SizeM12
Pitch1.75mm
Thread TypeCoarse
Pitch Diameter LimitsD11
Thread Length1-21/32""
Number Of Flutes3
Shank Diameter0.3670""
Cutting DirectionRight Hand
Overall Length3-3/8""
MaterialHigh Speed Steel
FinishUncoated
StandardsANSI, USCTI
ApplicationThe most Efficient Taps for Through Holes
