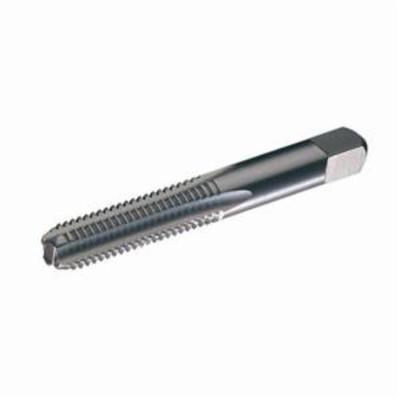

WIDIA™ GTD™ 5305L/5303L Straight Flute Tap Set, 3 Pieces, Imperial, 1/2-13, UNC Thread, 4 Flutes
Item #BC034983

WIDIA™ GTD™ Tap Set, Straight Flute, Series: 5305L/5303L, Measurement System Imperial, 3 Piece, 1/2-13, UNC, 1.66 in Thread Length, 3.38 in Overall Length, 4 Flutes, Left Hand Cutting, 0.367 in Shank Dia, HSS, Uncoated
  • Left hand ground thread taps for tapping left hand threads
  • Made from select high speed steel
  • Applicable on steel, stainless steel, non-ferrous materials, cast iron and ductile iron
  • Coolant flood
  • 7P-10P taper, 3P-5P plug and 1P-2P bottoming chamfer
  • H3 thread limit
Cutting DirectionLeft Hand
Finish/CoatingUncoated
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Number of Pieces3
Overall Length3.38 in
Series5305L/5303L
Shank Diameter0.367 in
Size1/2-13
Thread Length1.66 in
Thread StandardUNC
TypeStraight Flute
