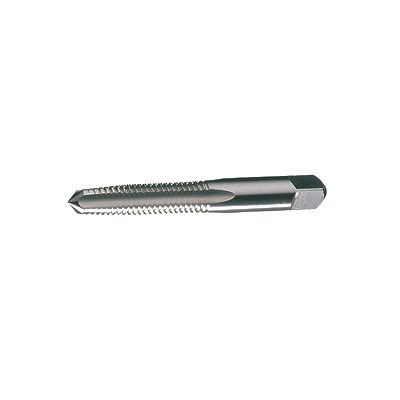

Kennametal® Widia-Gtd™ 14290 Production Bottoming Tap, 1/2-13 UNC, 3 Flute, HSS, Uncoated
Item #BC034995

Kennametal® Widia-Gtd™ Production Tap, List Number: 5303, Measuring System: SAE, Bottoming, Size: 1/2"", 13 Pitch, UNC Thread, Pitch Diameter Limits: H3, 1.660"" Thread Length, 3 Flute, Shank Diameter: 0.3670"", Right Hand Cutting Direction, 3.380"" Overall Length, High Speed Steel, Uncoated, ANSI, Can be used for Through-Hole Applications
  • Straight-flute design
  • Versatile design
  • Through-coolant holes available
  • Taps offer increased wear life
  • Store chips in their flutes during threading, which protects the workpiece
BrandKennametal® Widia-Gtd™
ItemProduction Tap
List Number5303
Measuring SystemSAE
Tap StyleBottoming
Size1/2""
Pitch13
Thread TypeUNC
Pitch Diameter LimitsH3
Thread Length1.660""
Number Of Flutes3
Shank Diameter0.3670""
Cutting DirectionRight Hand
Overall Length3.380""
MaterialHigh Speed Steel
FinishUncoated
StandardsANSI
ApplicationCan be used for Through-Hole Applications
