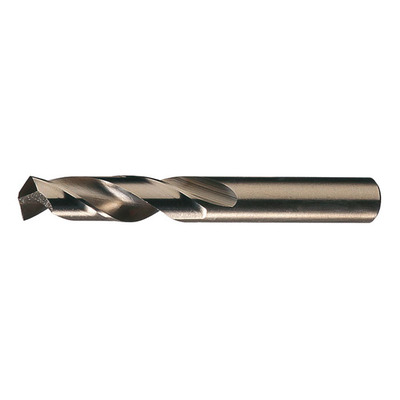

Chicago-Latrobe® 50836 Heavy Duty Screw Machine Drill, G, 2-5/8 in L, Cobalt, Straw
Item #BC038427

Chicago-Latrobe® Screw Machine Drill, Heavy Duty, Series: 559, G, 2-5/8 in Overall Length, 1-7/16 in Cutting Depth, Spiral Flute, 1-7/16 in Flute Length, 0.261 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, Cobalt Cutting Edge, Cobalt, Straw, Applicable Materials: Tool Steel, Alloy Steel, Carbon Steel and Cast Iron Applicable
  • Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
  • Self-centering for reduced thrust and easier penetration
  • Straw finish allows for easy identification of cobalt tools
MaterialCobalt
Applicable MaterialsTool Steel, Alloy Steel, Carbon Steel and Cast Iron
TypeHeavy Duty
Series559
Shank Size0.261 in
FinishStraw
Overall Length2-5/8 in
Shank TypeStraight
Point TypeSplit
Flute Length1-7/16 in
Flute TypeSpiral
Cutting DirectionRight Hand
Cutting Edge MaterialCobalt
Letter/Wire SizeG
Cutting Depth1-7/16 in
Point Angle135 deg
