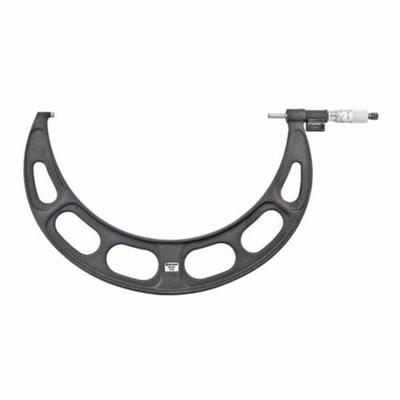

Starrett® 216XRL-12 Mechanical Digital Outside Micrometer, 11 - 12 in, Graduation 0.001 in, Carbide
Item #BC063356

Starrett® Outside Micrometer, Mechanical Digital, Series: 216, 11 - 12 in, +/-0.00025 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide, Black Frame, Satin Chrome Thimble, 18-41/64 in L x 3/4 in W x 9-47/64 in H
  • Clear, easily read numbers reduce errors
  • Balanced frame design for comfortable and accurate measuring
  • Gracefully designed tapered frame for use in narrow slots and tight places
  • Starrett no-glare satin chrome finish on thimble and sleeve
  • No-glare black finish on the frame
  • Ring-type knurled lock nut for quick and sure locking
  • Extremely hard and stable one-piece spindle
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
Accuracy+/-0.00025 in
Anvil TypeFlat
Dimensions18-41/64 in L x 3/4 in W x 9-47/64 in H
FinishBlack Frame, Satin Chrome Thimble
Graduations0.001 in
MaterialCarbide
Measuring Range11 - 12 in
Resolution0.001 in
Series216
Spindle Diameter1/4 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical Digital
