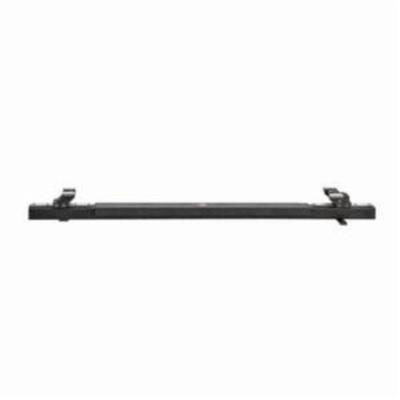

Starrett® 1126-48 Internal External Adjustable Setting Master, 42 - 48 in L Range, For Use With 1105 and 1101 Dia Gages
Item #BC063447
Starrett® Adjustable Setting Master, Internal External, Series: 1126, For Use With: 1105 and 1101 Dia Gages, 42 - 48 in L Range, 55-1/2 in L
- A platen on each head locates the diameter gage from its feet
- The position of the gage contacts is matched by the anvils on the masters which are vertically adjustable
- The reference head anvil has a fine adjustment for final settings, plus a restrictor to help position the gage in the master
- Both heads can be reversed for ID or OD settings
- Each master has a fixed single point rest and two leveling screws which provide a three-point suspension
- All contact and working surfaces are hardened and ground
- These setting masters are used to check and reset diameter gages under production gaging conditions
- Each master consists of a rigid box beam with reference and sensitive heads which are individually adjustable along dovetail ways
