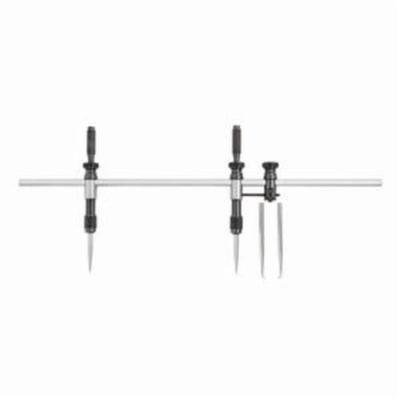

Starrett® C251B Trammel, For Use With 14-1/2 in Beam, Steel
Item #BC063520

Starrett® Trammel, Series: C251, For Use With: 14-1/2 in Beam, Steel, Bright Chrome Plated
  • The top of the beam is flattened so that when the trams are clamped in position, they will not turn from pressure on the points
  • One tram has a fine-adjusting screw for the points
  • Each tram has a knurled swivel grip at the top that turns freely, making it very convenient to swing the tool when scribing circles
  • Held in place by spring friction, which prevents them from sliding when the nuts are loosened for setting
  • The 3 in points may be adjusted for length in the spring chucks and can be easily replaced with caliper legs or other attachments listed
  • The ball points with 3 in holder permit working from holes upto 1-1/2 in Dia
  • A pair of 3 in caliper points is included with each trammel
  • 13-1/2 in maximum dividing range
  • 26 in scribing Dia range
FinishBright Chrome Plated
MaterialSteel
SeriesC251
Suitable For Use With14-1/2 in Beam
