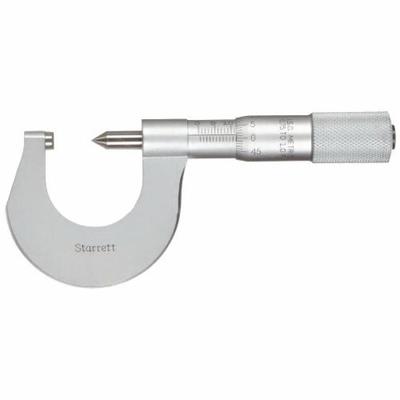

Starrett® 575MDP Mechanical Screw Thread Micrometer, 0.5 - 0.7 Threads/mm, Graduation 0.01 mm, Steel, Satin Chrome
Starrett® Screw Thread Micrometer, Mechanical, Series: 575, 0.5 - 0.7 Threads/mm, +/-0.0002 in Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Double V Anvil, Pointed Spindle, Plain Thimble, Steel, Satin Chrome
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame design for comfortable and accurate measuring
- Tapered frame for narrow slots and tight places
- Furnished with fixed, non-rotating anvil
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Quick and easy adjustment
- Design allows 50% to 75% contact with the thread to be measured, insuring contact with the pitch diameter at all times
- 0 - 25 mm capacity pitch diameter
- Comes with a 25 mm standard at no extra cost
