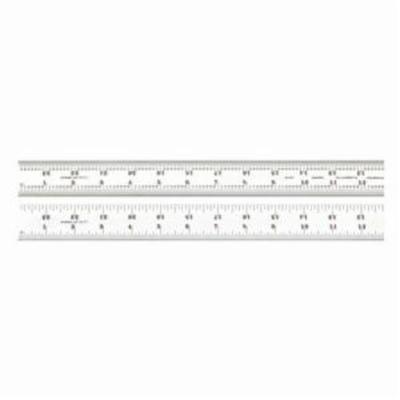

Starrett® C370-24 Shrink Rule, Measuring System Inch, Graduation 4R - 8ths, 16ths, Quick-Reading 32nds and 64ths
Item #BC063656
Starrett® Shrink Rule, 24 in Length, 1-1/4 in Width, 3/64 in Thickness, Measuring System: Inch, Graduations: 4R - 8ths, 16ths, Quick-Reading 32nds and 64ths, Black Markings, Spring-Tempered Steel, Satin Chrome Plated
- These spring-tempered, satin chrome finished shrink rules are for laying out wood and metal patterns and core boxes for casting metals
- Machine-divided rules provide uniformity of line width and depth
- Graduations are generally deeper than cheaper, photoengraved rules and will last longer
- The numbering size and style is distinctive and more readable than ordinary rules
- Quick reading figures are furnished with finer graduations for easier counting
- No-glare satin chrome finish for easier reading and rust resistance
- Ground square on both ends provides better efficiency through the ability to read from either end on all edges
- Advanced, staggered graduations when reading lines, it is much easier to count lines of differing lengths than those that resemble a comb
- Graduations are staggered in a height pattern that makes reading easy
- Double row of in figures, and each edge represents the bottom edge reading left to right
