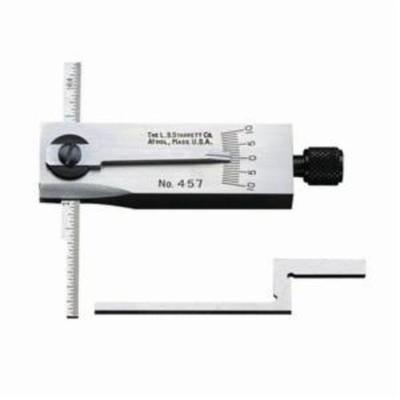

Starrett® 457C Diemakers Square With Straight and Offset Blades, 1-5/8 in L x 5/32 in W x 1/16 in THK, 32nds - 64ths
Starrett® Diemakers Square, Series: 457, 1-5/8 in L x 5/32 in W x 1/16 in THK, Graduations: 32nds - 64ths, 0 - 10 deg Measuring Angle, Measuring System: Inch, 2-1/16 in Tongue, 5/8 in W, 11/32 in T, Steel
- The beam is beveled adjacent to the blade so that the blade is readily visible when checking in holes, slots, etc
- Blades and beams are hardened and ground
- It is also very handy for patternmakers to check angles and drafts on patterns
- The beam of this square is graduated to show the setting in degrees of the blades
- Blades can be set for any angle upto 10 deg, either side of 0 deg and the angle is indicated by the line on the pointer
- Graduated blade, 32nds of an inch on one side and 64ths on other, it is 5/32 in wide over a length of 1-5/8 in and cut away at one end to a width of 3/32 in
- The offset blade, which is used where it would be impossible to insert the straight blade, protrudes from the square about 1-1/2 in, it is 1/8 in wide and both sides of each edge are beveled to give visual line contact
