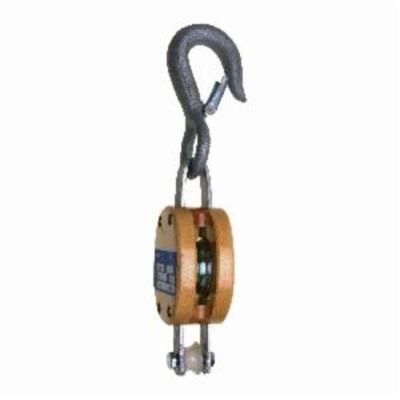

Campbell® by Apex® 3001AF Single Regular Shell Block, Manila Rope Cable, 5/8 in Dia, 1200 lb Load, 3/8 in ID x 3 in OD
Item #BC099854

Campbell® by Apex® Shell Block, Single Regular, Series: 3001AF, Manila Rope Cable, 5/8 in Dia Maximum Cable, 1200 lb, 3 in Sheave Outside Dia, 3/8 in Sheave Inside Dia, Self-Lubricating Bronze Bushing Bearing, Metal Sheave, 3/4 in Sheave Width
  • Hard wood shells
  • Drop forged fittings
  • Working loads are resultant working loads
  • Do not exceed the working load limit
  • Galvanized finish
  • Round loose hook "AF" fitting
  • 5 in block
BearingsSelf-Lubricating Bronze Bushing
Cable TypeManila Rope
Load Capacity1200 lb
Maximum Cable Size5/8 in Dia
Series3001AF
Sheave Inside Diameter3/8 in
Sheave MaterialMetal
Sheave Outside Diameter3 in
Sheave Width3/4 in
TypeSingle Regular
WarrantyLimited Lifetime
