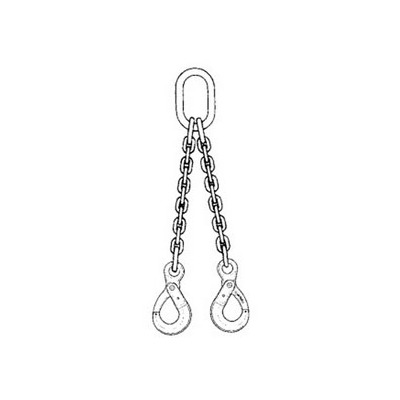

Campbell Grade 100 Alloy Steel Double Leg DOSL Chain Sling with 561-6215 J-Hook, 9/32 in x 5 ft
Item #BC111183

Chain Sling, Double Leg, DOSL, Chain Size: 9/32 in, 5 ft Length, 2-1/2 in x 5 in Sling Size, Attachment Type: Master Link One End and Self Locking Hooks Other End, 7400 lb @ 60 deg, 6100 lb @ 45 deg, 4300 lb @ 30 deg Working Load Limit, Alloy Steel, Grade 100, Includes: 561-6215 J-Hook, Standards ASME B30.9 and API RP2D, For Overhead Lifting
  • Double Leg Alloy Chain Sling With Master Link One End And Self Locking Hooks Other End
  • Heavy Gauge Stainless Steel Tag In Accordance With ASME B30.9 And API RP2D
  • Proof Tested To 2X Rated Capacity
  • Mechanically Coupled Or Welded Available
  • Hook Latches Optional On DOSL Model
  • Design Factor 4 - 1
  • With Hook 564-0695
TypeDouble Leg, DOSL
Chain Size9/32 in
Length5 ft
Sling Size2-1/2 in x 5 in
Attachment TypeMaster Link One End and Self Locking Hooks Other End
Work Load Limit7400 lbs at 60 deg, 6100 lbs at 45 deg, 4300 lbs at 30 deg
MaterialAlloy Steel
Grade100
Includes561-6215 J-Hook
StandardsASME B30.9 and API RP2D
ApplicationsFor Overhead Lifting
