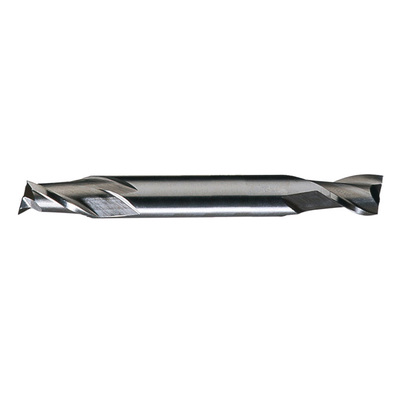

Cleveland® HMD-2 Center Cut Double End General Purpose End Mill, 2 in OAL, 2 Flutes, 0.2188 in, 9/64 in Cutter
Item #BC125783

Cleveland® End Mill, Center Cut Double End General Purpose Miniature Square End, Series: HMD-2, 9/64 in Cutter Dia, 2 in Overall Length, 3/16 in, 0.2188 in Maximum Depth of Cut, 2 Flutes, Spiral Flute, 3/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Straight Shank, HSS, TiCN Coated
  • Only one holder size needed for all cutting diameters
  • Double end mills have two cutting ends to reduce tool costs
  • 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Increase machining speeds to achieve optimum performance when using Cleveland coatings
  • TiCN (titanium carbonitride) coating in blue-gray color for very aggressive machining of stainless steels and non-ferrous materials
  • TiCN coating is extremely hard, wear resistant and increase machining speeds 35 to 50% versus bright speeds
  • Applicable on alloy steel, tool steel, carbon steel and cast iron
Arbor/Shank Size3/16 in
Cutter Diameter9/64 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
MaterialHSS
Maximum Depth of Cut0.2188 in
Number of Flutes2
Overall Length2 in
SeriesHMD-2
Shank Diameter3/16 in
Shank TypeStraight
TypeCenter Cut Double End General Purpose Miniature Square End
