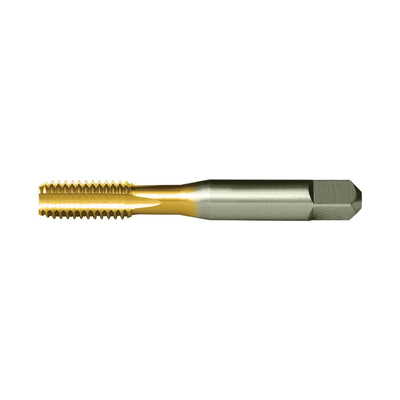

Cleveland® 1003-TN General Purpose Standard Straight Flute Tap, Imperial, 5/8-11, UNC Thread, 4 Flutes, 2B, Bottoming
Cleveland® Straight Flute Tap, General Purpose Standard, Series: 1003-TN, Measurement System Imperial, 5/8-11, UNC, Bottoming Chamfer, 4 Flutes, HSS, TiN Coated, Class of Fit: 2B, Right Hand Cutting, 1.09 in Thread Length, 3-13/16 in Overall Length, 5/8 in Shank Dia, 0.48 in Shank Length
- Ground thread for economical tapping
- 0.73 in neck length
- Straight with square shank configuration
- Applicable on cast iron, steel and stainless steel
- 9/16 in shank square length
- 2XD tap drill size
- 0.36 in square size
- H3 thread limit
