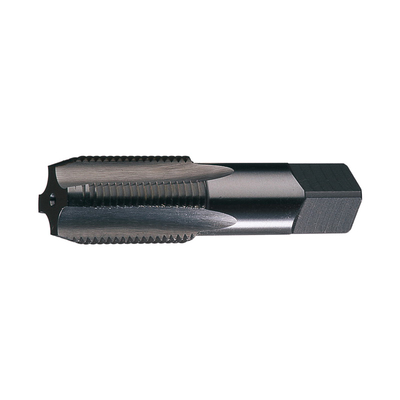

Cleveland® 967 General Purpose Straight Flute Pipe Tap, Imperial, 1/2-14, NPSF Thread, 4 Flutes, Semi-Bottoming
Item #BC129212

Min Order Qty: 3
Cleveland® Pipe Tap, General Purpose Straight Flute, Series: 967, Measurement System Imperial, 1/2-14, NPSF, Semi-Bottoming Chamfer, 1-3/8 in Thread Length, 3-1/8 in Overall Length, 4 Flutes, Right Hand Cutting, 11/16 in Shank Dia, 11/16 in Shank Length, 11/16 in Tap Drill, 0.515 in Square Size, HSS, Bright, Medium Hook
  • Ground thread for economical tapping
  • Straight with square shank configuration
  • Applicable on alloy tool steel, carbon steel, cast iron, steel and non-ferrous materials
  • 5/8 in shank square length
  • 0.579 in tap standard projection
Min Order Qty: 3
Chamfer TypeSemi-Bottoming
Cutting DirectionRight Hand
Finish/CoatingBright
HookMedium
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Overall Length3-1/8 in
Series967
Shank Diameter11/16 in
Shank Length11/16 in
Size1/2-14
Square Size0.515 in
Tap Drill Size11/16 in
Thread Length1-3/8 in
Thread StandardNPSF
TypeGeneral Purpose Straight Flute
