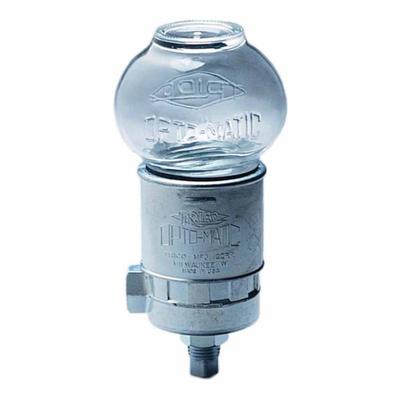

Trico 30003 Opto-Matic Oiler, 4 oz, 5-3/4 in H x 2-11/16 in W
Item #BC132535

Trico Opto-Matic Oiler, 4 oz, 5-3/4 in Height, 2-11/16 in Width, 2-11/16 in Bowl Dia, Glass Bowl, Zinc/Chromate Plated
  • 1/4 in NPT connection
  • Constant-level oiler features zinc-cast construction with zinc plating
  • 250 deg F operating
  • One-piece glass bottle reservoir
  • Viton® O-Ring
  • One piece glass reservoir ensures proper constant level function
  • Compared to competitive models, there is no possibility of air leakage that would cause overfilling of the bearing housing
  • Adjustable level setting allows use in many applications
  • Multiple air vent slots provide for proper functioning at all times
  • Large surge chambers helps prevent overflow of oil during machine start-up or shut-down
Container Size4 oz
FinishZinc/Chromate Plated
Width2-11/16 in
Bowl Diameter2-11/16 in
Height5-3/4 in
Bowl MaterialGlass
IncludesAdjustable Level Setting, Large Surge Chamber to Prevent Overflow, Side and Bottom
