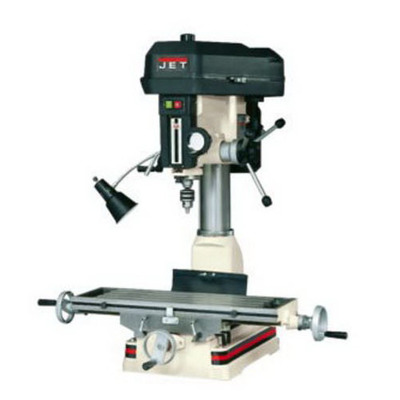

JET® 350017 Mill Drill Machine, 1 hp, 115/230 V, 7-1/2 in L x 23 in W Table, 14 in Longitudinal Travel
Item #BC145130

JET® Mill Drill Machine, 7-1/2 in L x 23 in W Table, Drilling Capacity: 1 in, 14 in Longitudinal Travel, 110 - 2580 rpm Spindle Speed, 12 Spindle Speed, 3-1/2 in Spindle Travel, R-8 Spindle Taper, 2-7/16 in Quill Dia, 15 in Spindle to Table Distance, 350 lb Table Load, 4 T-Slots, 9/16 in T-Slot, 1 hp, 115/230 V, 38 in L x 37-1/2 in W x 42 in H
  • For added safety, the JMD-15 follows strict guidelines and electrical requirements to be certified by CSA group
  • One-piece cast iron column for added support
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Base taper allows for easier clean up
  • Drill press angle vise
  • Extra large worktable
  • Heavy duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
  • 360 deg head swivel
  • 1/2 in end mill capacity
  • 14-1/2 in swing
Number of Spindle Speeds12
Drilling Capacity1 in
Spindle Travel3-1/2 in
Quill Diameter2-7/16 in
T-Slot Size9/16 in
Table Size7-1/2 in L x 23 in W
Spindle to Table Distance15 in
Table Load Capacity350 lb
Dimensions38 in L x 37-1/2 in W x 42 in H
Longitudinal Travel14 in
Spindle TaperR-8
Number of T-Slots4
Horsepower1 hp
Voltage Rating115/230 V
Spindle Speed110 - 2580 rpm
Warranty2 Years
Includes1/2 in Drill Chuck and Chuck Arbor, Adjustable Carbide Face Mill, Drill Press Angle Vise, Draw Bar and Work Lamp
