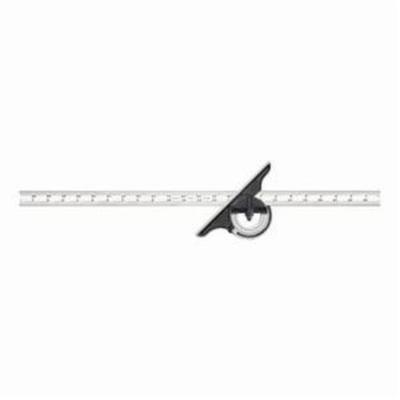

Starrett® 490-24-4R Reversible Bevel Protractor, 0 - 180 deg, 7 in L, 24 in L x 1 in W x 3/32 in THK Blade, Cast Iron
Starrett® Bevel Protractor, Reversible, Series: 490, 0 - 180 deg, 7 in L, 24 in L x 1 in W x 3/32 in THK Blade, Graduations: 4R - 8ths, 16ths, Quick-Reading, 32nds, 64ths, Cast Iron, Black Smooth
- Direct reading 0 - 180 deg in opposite directions, permitting the direct reading of angles and supplementary angles
- Protractor heads are made of stable cast iron and finished with a choice of attractive black wrinkle finish or smooth black finish
- Tempered steel blades with accurate, machine-divided graduations
- A spirit level indicates when the base reference surface is level - a feature not usually available on comparable protractors
- Reversible lock bolt allows choice of which graduated side of the blade faces the operator
- Reversible, there is a shoulder on both sides of blade, allowing the tool to be reversed so the same angle can be scribed or measured left and right
- Regular finish blade
- 3-1/4 in H x 1-9/64 in W
