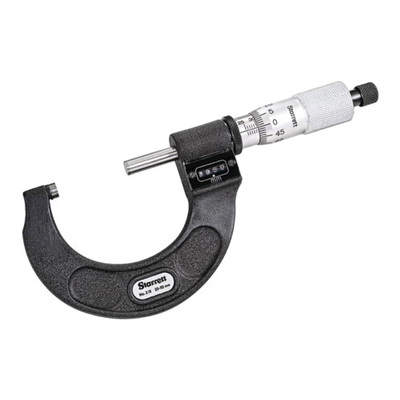

Starrett® V216MXRL-50 Mechanical Digital Outside Micrometer, 25 - 50 mm, Graduation 0.001 mm, Carbide
Item #BC208327

Starrett® Outside Micrometer, Mechanical Digital, Series: 216, 25 - 50 mm, +/-0.002 mm Accuracy, Graduations: 0.001 mm, 0.001 mm Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide, Black Frame, Satin Chrome Thimble, 6-19/32 in L x 23/32 in W x 2-53/64 in H
  • Clear, easily read numbers reduce errors
  • Balanced frame design for comfortable and accurate measuring
  • Gracefully designed tapered frame for use in narrow slots and tight places
  • Starrett no-glare satin chrome finish on thimble and sleeve
  • No-glare black finish on the frame
  • Ring-type knurled lock nut for quick and sure locking
  • Extremely hard and stable one-piece spindle
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
MaterialCarbide
TypeMechanical Digital
Series216
FinishBlack Frame, Satin Chrome Thimble
Graduations0.001 mm
Dimensions6-19/32 in L x 23/32 in W x 2-53/64 in H
Accuracy+/-0.002 mm
Resolution0.001 mm
Spindle TypeFlat
Spindle Diameter1/4 in
Thimble TypeRatchet
Anvil TypeFlat
Measuring Range25 - 50 mm
