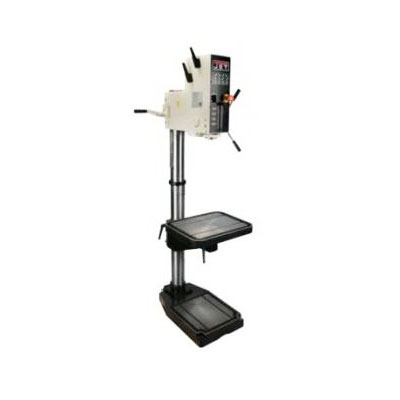

JET® 354034 Geared Head Bench Drill Press, 1-1/2 - 2 hp, 220 V, 3 Phase, 60 Hz, 26 in Swing, 15-3/4 x 19-3/4 in Table
Item #BC236152

JET® Bench Drill Press, Geared Head, 26 in Swing, MT-3 Spindle Taper, 6 in Spindle Travel, 90, 190, 320, 530, 640, 1060, 1790, 3610 rpm Spindle Speed, 8 Spindle Speed, 35 in Spindle to Table Distance, 12-5/8 in Spindle to Column Distance, 15-3/4 x 19-3/4 in Table, 450 lb Table Load, 45 deg Table Tilt, 28 x 24 in Base, 4-1/2 in Column Dia, 1-1/2 - 2 hp, 220 V, 3 Phase, 60 Hz, 5.8 A, 28 in L x 24 in W x 72 in H
  • Fiber and steel gears, which do not require an oil bath, allow for easier speed changes
  • No-volt release, prevents spindle start up when power returns after shut down
  • Adjustable taper bearings mounted in the end of the quill
  • Head and table rotates 360 deg around column
  • Drill head and table can be raised and lowered
  • Helical gears for smear, quiet operation
  • Quick-release drill ejector
  • English or metric depth gauge
  • Machined, T-slotted base plate
  • Steel column
Table Tilt45 deg
Base Dimensions28 x 24 in
TypeGeared Head
Swing26 in
Column Diameter4-1/2 in
Spindle to Column Distance12-5/8 in
Table Load Capacity450 lb
Spindle Travel6 in
Table Size15-3/4 x 19-3/4 in
Horsepower1-1/2 - 2 hp
Amperage Rating5.8 A
Number of Spindle Speeds8
Spindle TaperMT-3
Spindle to Table Distance35 in
Voltage Rating220 V, 3 Phase, 60 Hz
Dimensions28 in L x 24 in W x 72 in H
Spindle Speed90, 190, 320, 530, 640, 1060, 1790, 3610 rpm
Warranty2 Years
