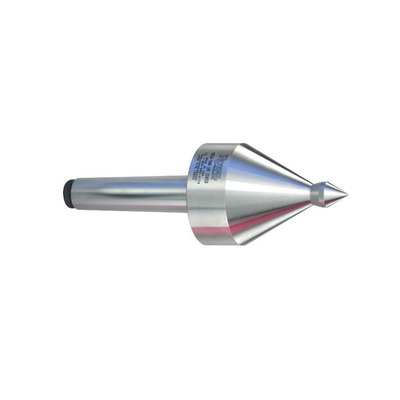

Royal 10832 Versa Turn Live Center, Taper Shank, 3 MT Taper, 330 lb Maximum Workpiece, 2160 lb/2490 lb Load
Item #BC248851

Royal Live Center, Versa Turn, Taper Shank, 3 MT Taper, 330 lb Maximum Workpiece Weight, Long Point, 1/2 in Point Dia, 0.74 in Point Length, 2160 lb/2490 lb, 2.13 in Head Dia, 2.22 in Head Length, 6-3/8 in Overall Length, 5000 rpm Maximum, 60 deg Included Angle, Triple Bearing, Steel, +/- 0.000050 in TIR Accuracy
  • The Royal versa turn live center is an excellent multi purpose live center designed to handle most common turning jobs
  • This center is extremely free turning, making it an ideal choice for thin parts that could bend when subjected to high axial loads
  • The unique design of the Royal versa turn live center is actually two live centers in one, making it a great value for cost conscious manufacturers
  • The extended front section of the point is used for parts with standard center holes and provides excellent tool clearance
  • The versa turn's rear bull-head section is great for tubes and parts with large center holes
  • Two precision radial bearings offer high operating speeds and a centrally positioned thrust bearing provides high axial load ratings
  • Accuracy of the Royal versa turn live center is very high, with runout guaranteed to +/- 0.00005 in TIR or better
Accuracy+/- 0.000050 in TIR
Bearing TypeTriple
Head Diameter2.13 in
Head Length2.22 in
Included Angle60 deg
Load Capacity2160 lb/2490 lb
MaterialSteel
Maximum Speed5000 rpm
Maximum Workpiece Weight330 lb
Overall Length6-3/8 in
Point Diameter1/2 in
Point Length0.74 in
Point TypeLong
Shank TypeTaper
Taper Size3 MT
TypeVersa Turn
