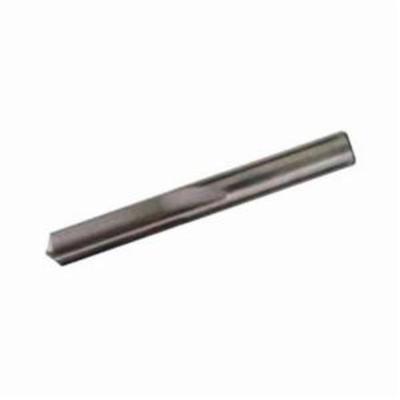

WIDIA™ Metal Removal® DSF-ST General Purpose Stub Length Straight Flute Drill, 3/16 in Dia x 2-3/16 in L, 2 Flutes
Item #BC298602

WIDIA™ Metal Removal® Straight Flute Drill, General Purpose Stub Length, Series: DSF-ST, 3/16 in Dia, 2-3/16 in Overall Length, 1-1/8 in Cutting Depth, 2 Flutes, Straight Flute, 3/16 in Shank, Parallel Shank, 140 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Uncoated, Applicable Materials: Non-Ferrous Materials, Hardened Materials, Stainless Steel and Cryogenic Alloys
  • Uncoated drills standard, coated tools available as a modification
  • The added web strength of the straight flutes and special point configuration easily penetrate work pieces with minimal deflection
  • Bright surface treatment
  • Non-coolant
Applicable MaterialsNon-Ferrous Materials, Hardened Materials, Stainless Steel and Cryogenic Alloys
Cutting Depth1-1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Diameter3/16 in
FinishUncoated
Flute TypeStraight
MaterialSolid Carbide
Number of Flutes2
Overall Length2-3/16 in
Point Angle140 deg
SeriesDSF-ST
Shank Size3/16 in
Shank TypeParallel
TypeGeneral Purpose Stub Length
