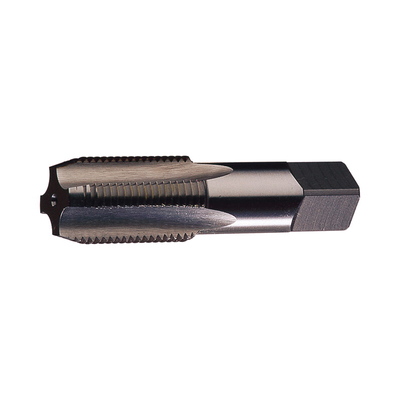

Cle-Line® 0463 Straight Flute Pipe Tap, Imperial, 1/2-14, NPS Thread, 4 Flutes, Right Hand Cutting Direction
Cle-Line® Pipe Tap, Straight Flute, Series: 0463, Measurement System Imperial, 1/2-14, NPS, Semi-Bottoming/Tapered Chamfer, 1-3/8 in Thread Length, 3-1/8 in Overall Length, 4 Flutes, Right Hand Cutting, 1/2 in Shank Dia, 11/16 in Shank Length, 1/2 in Tap Drill, 0.515 in Square Size, HSS, Bright, Medium Hook
- Ground thread for economical tapping
- NPS thread design, suitable for NPSC series tap
- 3-1/2 in thread chamfer
- Straight with square shank configuration
- Applicable on cast iron, steel and non-ferrous materials
- 5/8 in shank square length
- 0.579 in tap standard projection
