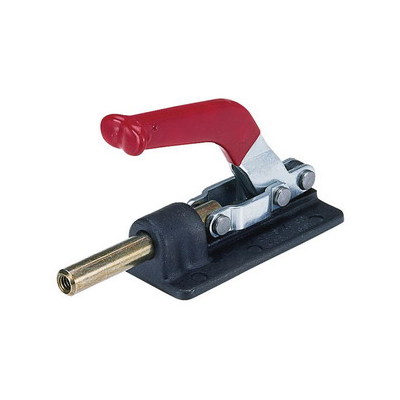

De-Sta-Co® 56100 Manual Straight Line Action Toggle Clamp with Red Vinyl Handle, 800 lb.
Item #BC336092

De-Sta-Co® Manual Straight Line Action Toggle Clamp, Manual Straight Line Action Toggle Clamp Item, For Push/Pull Clamping, Assembly & Test, Woodworking, Tensioning Devices, Universal Models, Red Vinyl Handle, Holding Capacity: 800 lb., 4-9/16" Overall Height, 6-3/4" Overall Length, 1-5/8" Plunger Travel, Spindle: 210203 Recommended, Thread Size: 3/8-16
  • Allow handle to rotate and fall below mounting plane to lock in retracted position
  • Lock in either extended or retracted position
  • Well adapted for use in confined areas
  • Fully retractable plunger
  • Plunger tapped for 5/16-18 adjustment spindle
  • Models with base
BrandDe-Sta-Co®
ItemManual Straight Line Action Toggle Clamp
ApplicationFor Push/Pull Clamping, Assembly & Test, Woodworking, Tensioning Devices, Universal Models
HandleRed Vinyl
Holding Capacity800 lb.
Overall Height4-9/16"
Overall Length6-3/4"
Plunger Travel1-5/8"
Spindle210203 Recommended
Thread Size3/8-16
