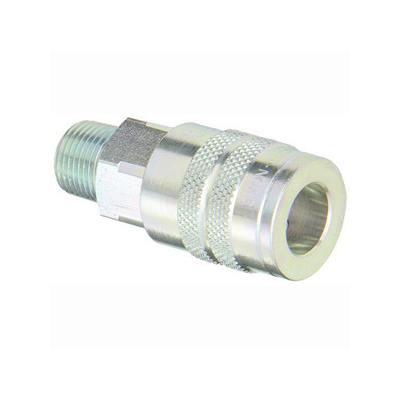

Dixon 3FM3 Quick Coupler, 3/8" x 3/8" MNPT, Steel, Trivalent Chrome
Item #BC411267

Dixon Quick Coupler Body, F, 3/8"" NPT Pipe, MNPT Hose Connection, 7/8"" Hex Size, 1.06"" Maximum OD, 3/8"" Body Size, Steel Body Material, Sleeve Locking Mechanism, 2.46"" Length, Trivalent Chrome, 45 cfm, Buna-N Seal, 500 psi Maxi, -40 to 250°F, For Use With: On End of Hose or Pipe
  • Automatic industrial interchange pneumatic fitting coupler
  • Made of brass with steel tubular valve as standard
  • Nitrile (Buna-N) seals are standard, providing a temperature range of -40°F - +250 °F
BrandDixon
ItemQuick Coupler Body
SeriesF
Pipe Size NPT3/8""
Hose ConnectionMNPT
Hex Size7/8""
Maximum OD1.06""
Body Size3/8""
Body MaterialSteel
Locking MechanismSleeve
Length2.46""
FinishTrivalent Chrome
Flow Rate45 cfm
Seal MaterialBuna-N
Maximum Pressure500 psi
Temperature Range-40 to 250°F
For Use WithOn End of Hose or Pipe
