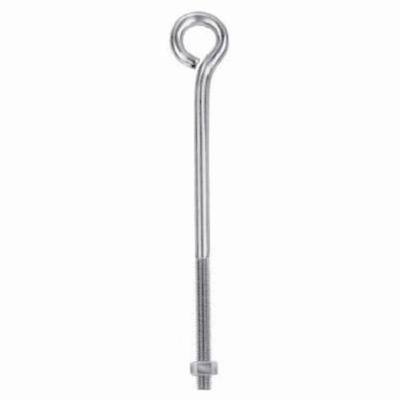

Chicago Hardware 07090 4 Turned Eye Bolt With Hex Nut, Imperial, 5/16-18, 1 in Shank, Low Carbon Steel, Zinc Plated
Item #BC424290

Chicago Hardware Turned Eye Bolt, Measurement System Imperial, 5/16-18, 1 in Shank Length, Low Carbon Steel, Zinc Plated, 5/8 in Inside Eye Dia, 1-11/64 in Outside Eye Dia, Machined, 2-1/8 in Overall Length, 96 lb Working, 7/8 in Thread Length
  • Turned eye bolts are manufactured from low carbon cold drawn steel wire and are supplied with NC rolled machine threads with one hex nut unassembled
  • Rust preventive finishes or self-colored available on a special basis
  • 5/16 in Dia shank
Diameter - Thread Size5/16-18
FinishZinc Plated
Inside Eye Diameter5/8 in
MaterialLow Carbon Steel
Measurement SystemImperial
Outside Eye Diameter1-11/64 in
Overall Length2-1/8 in
Shank Length1 in
Thread Length7/8 in
Thread TypeMachined
Working Load Limit96 lb
