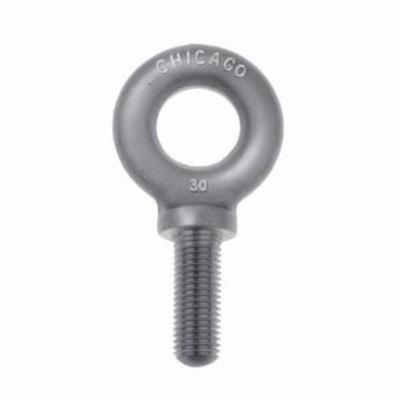

Chicago Hardware 13051 6 Shoulder Pattern Threaded Machinery Eye Bolt, Imperial, 1-1/2-6, 3-1/2 in Shank
Item #BC429229

Chicago Hardware Machinery Eye Bolt, Shoulder Pattern Threaded, Measurement System Imperial, 1-1/2-6, 3-1/2 in Shank Length, Heat Treated Drop Forged Steel, 2-1/2 in Inside Eye Dia, 5-3/16 in Outside Eye Dia, UNC, 9-1/2 in Overall Length, 21000 lb Working, Standard Shank
  • NO 34 shoulder pattern
  • 4900 lb working load limit for 45 deg pull angular lift
Diameter - Thread Size1-1/2-6
Inside Eye Diameter2-1/2 in
MaterialHeat Treated Drop Forged Steel
Measurement SystemImperial
Outside Eye Diameter5-3/16 in
Overall Length9-1/2 in
Shank Length3-1/2 in
Shank TypeStandard
Thread TypeUNC
TypeShoulder Pattern Threaded
Working Load Limit21000 lb
