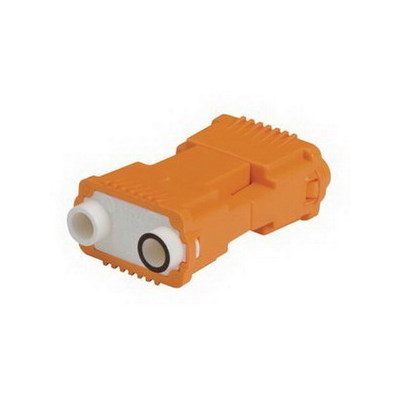

Ideal® PowerPlug® 30-352J Male/Female Ballast Disconnect, 600V, 18 to 12 AWG Solid, Orange
Item #BC505369

Ideal® PowerPlug® Male/Female Ballast Disconnect, Male/Female Ballast Disconnect Item, Color Code: Orange, Copper Alloy Connection, Connection Type: Push-In, Nylon Insulation, 221°F Maximum Temperature, 600V Maximum Voltage, Standards: UL 2459, CSA 182.3, Meets CEC and NEC Code Changes For Non-Residential Fluorescent Luminaires With Ballasts, Wire Range: 18 to 12 AWG Solid, 14 to 12 AWG Stranded
  • Patented push in technology quickly locks wires in place
  • Perfect for OEM or retrofit lighting applications
  • 2 port
  • 6A max. current range
  • Fits through 1/2" knockout
  • Pieces pull apart safely and easily
  • 3/8" strip length indicator
  • Thumb ridges provide superior grip
BrandIdeal® PowerPlug®
ItemMale/Female Ballast Disconnect
Color CodeOrange
Connection MaterialCopper Alloy
Connection TypePush-In
Insulation TypeNylon
Maximum Temperature221°F
Maximum Voltage600V
StandardsUL 2459, CSA 182.3, Meets CEC and NEC Code Changes For Non-Residential Fluorescent Luminaires With Ballasts
Wire Range18 to 12 AWG Solid, 14 to 12 AWG Stranded
