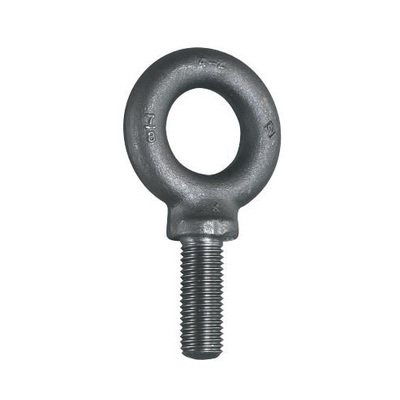

Williams® EB-21T Shoulder Pattern Eye Bolt, 3/4 in ID, 1/4-20, 1/4 in Shank, Forged Carbon Steel
Item #BC598378
Williams® Eye Bolt, Shoulder Pattern, 3/4 in Inside Dia, UNC, 1/4-20, 2-7/16 in Overall Length, 1/4 in Shank, 2500 lb Tensile, Forged Carbon Steel, 2A
- Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
- Each lot is tested and inspected to insure conformance to specifications
- Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially
- Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
- 9/16 in W shoulder
- 1 in L shank
- 9/32 in THK head cross-section
- A steel washer or spacer may be required for proper seating
- To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable
- Tightness and seating must be checked after initial load
