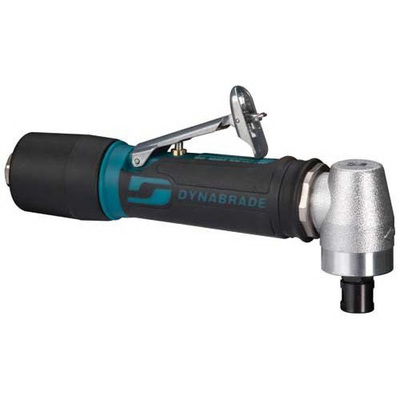

Dynabrade® 46000 Spiral-Geared Die Grinder, 1/4 in Collet, 0.4 hp, 25 scfm, 90 psi, 12000 rpm
Item #BC826947

Dynabrade® Die Grinder, Spiral-Geared, 1/4 in Collet, 12000 rpm, 0.4 hp, 25 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Exhaust Location, Lever Throttle, 1/4 in ID Minimum Hose Size, Composite Housing, Right Angle Handle, 78 dBA, 8 in L x 2.9 in H
  • Kevlar phenolic vanes for longer life
  • Lightweight ergonomic design for greater comfort and control
  • 0.4 hp die grinders are perfect for use on metal, fiberglass, carbon fiber, composites and more, are designed for peak efficiency and longer life
  • Governor controlled motor maintains speed under load
  • Extended muffler ensures lowest sound levels
  • Pneumatic-powered
  • Pinion piloted on rotor
  • Lightweight ergonomic design
  • Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours
  • Composite handle
TypeSpiral-Geared
Includes1/4 in and 6 mm Collet Inserts
Handle StyleRight Angle
Dimensions8 in L x 2.9 in H
Horsepower0.4 hp
Air Flow25 scfm
Air Inlet1/4 in NPT
Sound Level78 dBA
Air Pressure90 psi
Exhaust LocationRear
Throttle StyleLever
Housing MaterialComposite
Speed12000 rpm
Collet Capacity1/4 in
Minimum Hose Size1/4 in ID
