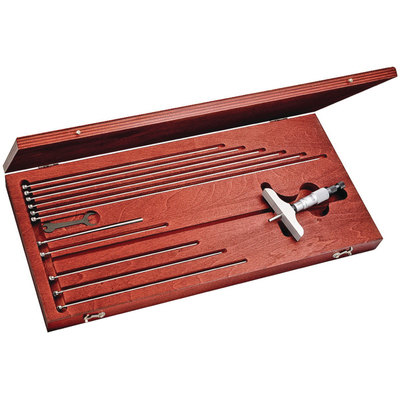

Starrett® 445AZ-12RL Mechanical Depth Micrometer, 0 - 12 in, Graduation 0.001 in, Satin Chrome
Item #BC829896

Starrett® Depth Micrometer, Mechanical, Series: 445, 0 - 12 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, Ratchet Thimble, Satin Chrome
  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • 3 in (75 mm) base and 5/32 in (4 mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring-type knurled lock nut for quick and sure locking
  • Satin chrome reading surface is glare free and resists rust
TypeMechanical
Series445
IncludesLock kit, 0.123x.155x151 Pin, 0.132x.156x.094x.012x2-1/2 Spring, Shell Cap, Barrel Spring, 0.291-40 Spindle SCR, Binder ring, Adjusting Shell, 0.375-52 Nut, Outside shell, Ratchet assembly, #2-64 Ratchet nut, 0.066D x .156L Ratchet Pin, Cap Assembly, 0.041x.061x.188x.010x6 Spring, #2-64 Slot x .204 Long Screw, 0-1 in Rod assembly, 1-2 in Rod assembly, 2-3 in Rod assembly, 3-4 in Rod assembly, 4-5 in Rod assembly, 5-6 in Rod assembly, 6-7 in Rod assembly, 7-8 in Rod assembly, 8-9 in Rod assembly, 9-10 in Rod assembly, PT99359 10-11 in Rod assembly, 11-12 in Rod assembly, #3 Wrench, 445AAZZ-12 Wood case only and 0.125-40 Replacement rod nut
FinishSatin Chrome
Graduations0.001 in
Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods
Thimble TypeRatchet
Measuring Range0 - 12 in
