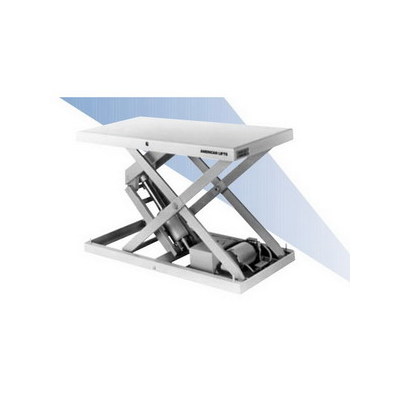

Autoquip American Lifts S-36-040 Single Arm Scissor Lift, 4000 lb. Capacity, 61" x 32" x 72"
Autoquip American Lifts Single Arm Scissor Lift, Single Arm Scissor Lift Item, 72" Maximum Lifting Height, Lifting Height Minimum: 36", 4000 lb. Load Capacity, 8" Lowered Height, 61" Platform Length, 32" Platform Width
- Travel heights from 36" to 72"
- Larger platforms permit greater versatility and stability in loading or unloading large products or materials
- Standard pump motor for S series lifts is 1 HP, 115V, 60 Hz, 1 phase, D series lifts, 1/2 HP 230 to 460V, 50 to 60 Hz, 3 phase. Pumps can be mounted internally or externally
- Standard pump motor is a high torque totally enclosed motor with stress proof shaft and all copper windings
- Motor is closely coupled to heavy-duty gear pump with built-in check and relief valves for reliable performance and minimum maintenance
- 115V push button control or covered foot switch with ten feet of power control cord is standard on all models
- Optional short frame space saver models are designed for installation in confined spaces
- External pump unit is required on all space saver models
- 40 sec. raising time
