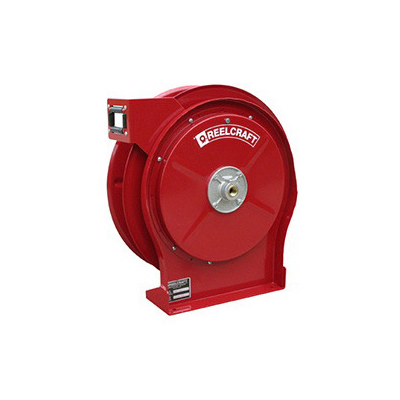

Reelcraft® 5605 OLP Premium Duty Low Pressure Hose Reel, 3/8 in ID x 3/5 in OD x 50 ft L Hose, 300 psi, 16-1/2 in Dia
Item #BC852298

Reelcraft® Hose Reel, Premium Duty, Low Pressure, Series: 5005, 3/8 in ID x 3/5 in OD x 50 ft L Hose, 300 psi, 16-1/2 in Reel Dia, 2-1/2 in Reel Width, Spring Retractable Drive, Bench, Ceiling, Floor, Truck and Wall Mount, Brass/Copper/Zinc Dichromate Swivel, Buna N Seal, 17-5/8 in H x 16-1/2 in W x 5-7/8 in D, Reinforced Stainless Steel, Powder Coated, Red
  • Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
  • All steel components are powder coated for maximum corrosion resistance
  • Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
  • The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
  • Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Quite speed latch - the latch cam is designed for reliable quiet operation
  • 3/8 in FNPT reel inlet
  • 150 deg F maximum temperature
ColorRed
MaterialReinforced Stainless Steel
TypePremium Duty, Low Pressure
Series5005
FinishPowder Coated
Drive TypeSpring Retractable
Dimensions17-5/8 in H x 16-1/2 in W x 5-7/8 in D
Mounting TypeBench, Ceiling, Floor, Truck and Wall
Hose Capacity3/8 in ID x 3/5 in OD x 50 ft L
Reel Width2-1/2 in
Swivel MaterialBrass/Copper/Zinc Dichromate
Seal TypeBuna N
Pressure Rating300 psi
Reel Diameter16-1/2 in
