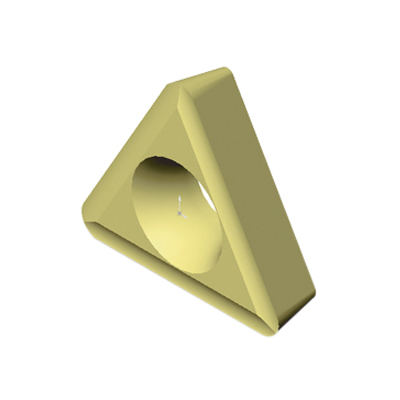

American National Carbide 2957-860 American Standard Carbide Turning Insert, TPGH-21.52, AN2020, Multi-Layered Gold Coated
Item #BC859664

Min Order Qty: 10
American Standard Carbide Turning Insert, TPGH-21.52 ANSI Number, P15-P30, M15-M30 ISO Number, Style: TPGH, 60 Deg Triangle Insert Shape, 3/32"" Inscribed Circle, 21.52 Insert Seat Size, 3/32"" Insert Thickness, 1/32"" Nose Radius, Coating: Multi-Layered Gold, AN2020 Grade, Positive Rake, 0 Deg Relief Angle, 0.123"" Mounting Hole, Workpiece Material: Carbon and Alloy Steels
  • Provides excellent thermal wear and mechanical shock resistance
  • Molded-to-size reliability or precision ground
Min Order Qty: 10
BrandAmerican National Carbide
ItemAmerican Standard Carbide Turning Insert
ANSI NumberTPGH-21.52
ISO NumberP15-P30, M15-M30
StyleTPGH
Insert Shape60 Deg Triangle
Inscribed Circle3/32""
Insert Seat Size21.52
Insert Thickness3/32""
Nose Radius1/32""
CoatingMulti-Layered Gold
GradeAN2020
RakePositive
Relief Angle0 Deg
Mounting Hole Diameter0.123""
Workpiece MaterialCarbon and Alloy Steels
