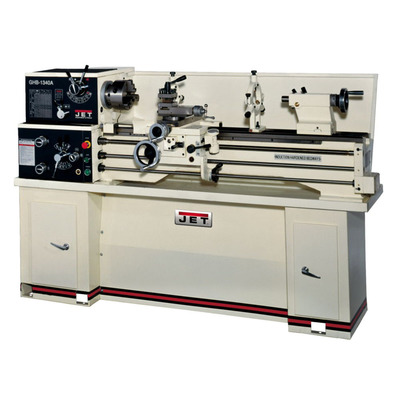

JET® 321102 Geared Head Bench Lathe, 13 in Swing Over Bed, 7-25/32 in Swing Over Cross Slide, MT-5 Spindle, 2 hp
JET® Bench Lathe, Geared Head, 13 in Swing Over Bed, 7-25/32 in Swing Over Cross Slide, 43 in Distance Between Centers, 7-3/8 in Bed Width, MT-3 Tailstock Taper, MT-5 Spindle, 70 - 2000 rpm Spindle Speed, 8 Spindle Speed, 6-5/16 in Cross Travel, 3-3/4 in Tailstock Spindle Travel, 35 in Carriage Travel, 2-11/16 in Compound Travel, 0.013 in Maximum Cross Feed Rate per Revolution, 0.0374 in Maximum Longitudinal Feed Rate per Revolution, 2 hp, 230 V, 3 Phase, 79 in L x 28-1/2 in W x 30 in H
- One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
- Hardened and ground gears are featured in the headstock and gearbox
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Headstock is constantly oiled during operation
- Enclosed gearbox design provides smear, quiet operation
- Gear box gives wide inch threading and feed capabilities with no gear changes
- V-way bed design is induction hardened and ground
- Gap bed section provided for larger diameter work
- Independent lead screw and feed rod
- Spindle actuation control is apron mounted
